8 Work Station Auto Hot Stamping Machine 360-Degree Printing For Small Container
Λεπτομέρειες:
| Τόπος καταγωγής: | ΚΙΝΑ |
| Μάρκα: | Senny |
| Πιστοποίηση: | CE,SGS |
| Αριθμό μοντέλου: | SRS829 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1PC |
|---|---|
| Τιμή: | negotiable |
| Συσκευασία λεπτομέρειες: | Περιτύλιγμα ταινιών |
| Χρόνος παράδοσης: | 45 ημέρες |
| Όροι πληρωμής: | T/t |
| Δυνατότητα προσφοράς: | 10pcs/μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Αυτόματο βαθμό: | Πλήρως αυτόματος | Τύπος μοντέλου: | SRS829 |
|---|---|---|---|
| Τύπος πλάκας: | Εκτυπωτής οθόνης | Μάρκα: | Σένι |
| Υπηρεσία μετά την πώληση: | Βίντεο ή on-line | Εκτύπωση χρώματος: | 1 |
| Πιστοποίηση: | CE SGS | Όροι πληρωμής: | T/t |
| Χρόνος παράδοσης: | 45 ημέρες | Εγγύηση: | 1 έτος |
| Δυνατότητα προσφοράς: | 5pcs/μήνα | Λεπτομέρειες πακέτου: | Πακέτο κόντρα πλακέ |
Περιγραφή προϊόντων

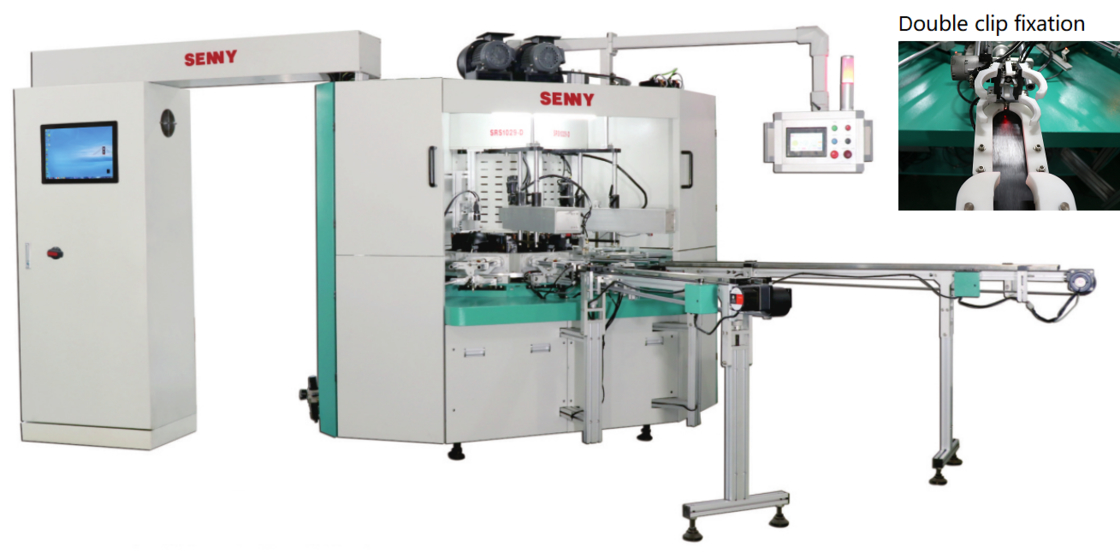

8 Work Station Auto Hot Stamping Machine 360-Degree Printing For Small Container
PRODUCT
Machine Features
The machine is suitable for screen printing various colors of UV ink, hot stamping and other decorations on bottles, jars, caps and other shapes of products, which are made of plastic, metal, glass and other materials.
The machine is specially developed for small container printing,with compact structure and small footprint.
The machine features an integrated turntable design. All printing functions are completed with the same fixture, ensuring printing accuracy up to ±0.1mm and no product scratches.
Driven by a digitally controlled servo motor, the machine enables 360-degree product printing and comes with remote management and service functions (Industry 4.0).
Adopting well-known brand electrical components and a PLC control system, the machine supports easy operation via touch screen and wireless tablet, with reliable performance.
Technical parameters
| Machine Model | SRS829 |
| Work Station | 8 |
| Printing Speed | Up to 45pcs/min |
| Diameter at 360 Degree | 13-60mm |
| Container Height | 20-200mm |
| Max Printing Length | 200mm |
| Max Printing Height | 160mm |
Optional Configuration
- Plasma surface trearment function
- Hot stamping function
- Visual registration function
- LED-UV curing system
- Finished product quality inspection function
Hot stamping device UV curing
Applications
SRS829 Series Automatic Single-color Screen Printing UV Curing Machine is a specialized device for bottles and tubes. It features a wide printing scope, applicable to screen printing on small containers including mascaras, eyebrow pencils, and small skin care jars.

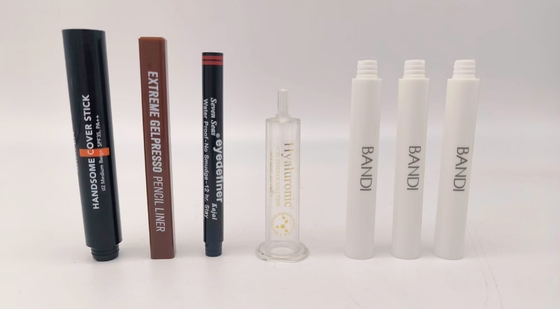

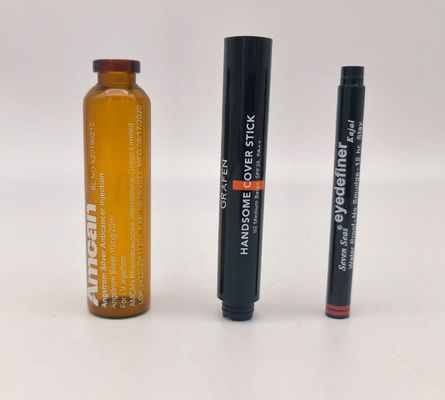

Printing sample
Customer/Exhibition
