Flame Treatment For Round Elliptical And Rectangular Containers With Multicolor Screen Printing Machine
Λεπτομέρειες:
| Τόπος καταγωγής: | Dongguan China |
| Μάρκα: | SENNY |
| Πιστοποίηση: | CE SGS |
| Αριθμό μοντέλου: | SL1888 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1PC |
|---|---|
| Τιμή: | negotiable |
| Συσκευασία λεπτομέρειες: | Πακέτο κόντρα πλακέ |
| Χρόνος παράδοσης: | ένα μήνα |
| Όροι πληρωμής: | TT ή LC |
| Δυνατότητα προσφοράς: | 10pcs/μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Αυτόματο βαθμό: | Πλήρως αυτόματος | Σταθμοί: | 1-12 |
|---|---|---|---|
| Τύπος πλάκας: | Εκτυπωτής οθόνης | Υπηρεσία μετά την πώληση: | Βίντεο ή on-line |
| Τυπωμένα χρώματα: | 1 έως 12, μπορεί να προσαρμοστεί | Μάρκα: | Senny ή OEM |
| Όροι πληρωμής: | T/t | Λεπτομέρειες πακέτου: | Πακέτο κόντρα πλακέ |
| Πιστοποίηση: | CE | Δυνατότητα προσφοράς: | 5pcs/μήνα |
Περιγραφή προϊόντων
Flame Treatment For Round Elliptical And Rectangular Containers With Multicolor Screen Printing Machine
Technical Specifications:
| Max. printing area | L300 x W250mm |
| Cylindrical container diameter | Φ20-Φ120mm |
| Square or Oval product diameter | Φ20-Φ100mm |
| Width elliptical or flat container | 20-130mm |
| Container height | 50-300mm |
| Max. printing speed | Up to 6000pcs/hr |
SAFE EFFIENCY INNOVATIVE

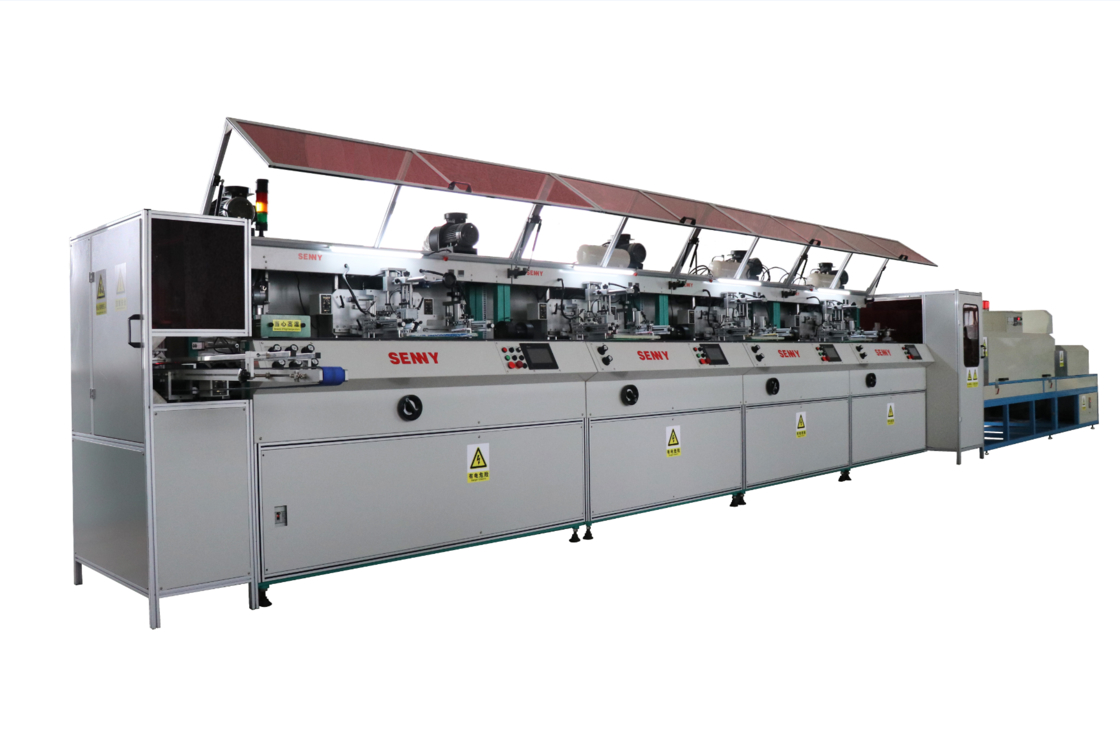

- SLS1888 Servo-driven automatic machine for silk-screen printing of containers in plastic or other materials, having a circular, elliptical, square or rectangular section with centered or off-center neck,and it is easy for changing different shapes on printing section.
- Shape changeover: 30minutes for each machine,from cylindrical format to elliptical or flat format, can print all around in 360 degree.
- Linear unit structure combination: option of adding up to a total of eight in-line colors .
- The machine is operated by PLC and touch panel,which is easy to operate with excellent warning system.
- In-feeding parts includes:in-feeding belt and machine hand for side-selection.
- The host unit of the machine side-selection driven by servo motor,rotation for dust-removal of round container and flame treatment.
- Flame treatment for round,elliptical and rectangle container
- Device for pre-positioning
- Second time positioning for printing.
- Electronic lift for squeegee.
- UV curing by rotating round container driven by stepper motor.
- Electronic UV system: device for adjusting light freely(LED UV curing system can be as a replacement)
- Elliptical and square container side-selection for auxiliary machine section
- Output parts:Machine hand for container standing up and belt
- Conform to CE standard.

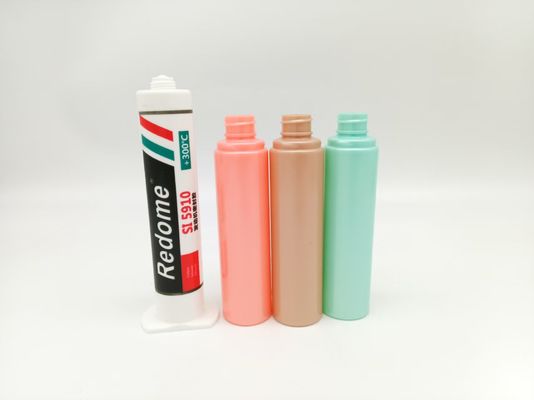

Printing samples
Workshop
Support and Services:
We provide comprehensive technical support and service guarantees for cap printing machines. Our professional team consists of experienced and well-trained technicians, ready to solve any problems that arise during the operation of your machine. Our support services cover various aspects, including troubleshooting, parts replacement, equipment maintenance, and software upgrades. We also offer on-site repair and maintenance services to ensure that the equipment can be properly handled on-site. In addition, we have a complete range of replacement parts and supplies to meet your various needs.
We always take pride in providing excellent customer service. Our team is on call 24/7 to answer your questions and handle issues at any time. We are committed to delivering high-quality services and fully ensuring your satisfaction.
If you have any questions or need assistance, please feel free to contact us. We look forward to supporting your bottle cap printing machine!
