CNC Automatic Printing Machine with 360-Degree Printing ±0.1 mm Accuracy and Remote Management for Tubes
Λεπτομέρειες:
| Τόπος καταγωγής: | Dongguan China |
| Μάρκα: | SENNY |
| Πιστοποίηση: | CE SGS |
| Αριθμό μοντέλου: | SRS1249 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1PC |
|---|---|
| Τιμή: | negotiable |
| Συσκευασία λεπτομέρειες: | Πακέτο κόντρα πλακέ |
| Χρόνος παράδοσης: | 45 ημέρες |
| Όροι πληρωμής: | T/t |
| Δυνατότητα προσφοράς: | 10 τεμ./Μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Αριθμό μοντέλου: | SRS1249 | Τυπωμένο χρώμα: | 4 χρώματα |
|---|---|---|---|
| Μάρκα: | Σένι | Εγγύηση: | 1 έτος |
| Υπηρεσίες μετά την πώληση: | Βίντεο ή on-line | Τύπος πλάκας: | μηχανή εκτύπωσης οθόνης |
| Επισημαίνω: | 4-color tube screen printing machine,45pcs/min automatic printing machine,CNC tube printing machine with warranty |
||
Περιγραφή προϊόντων

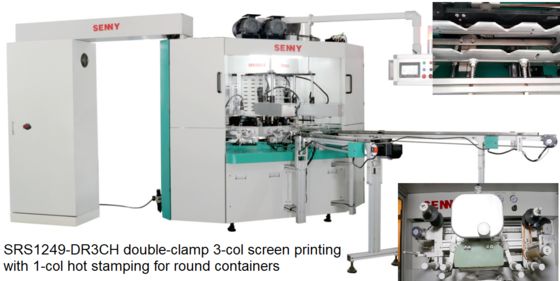

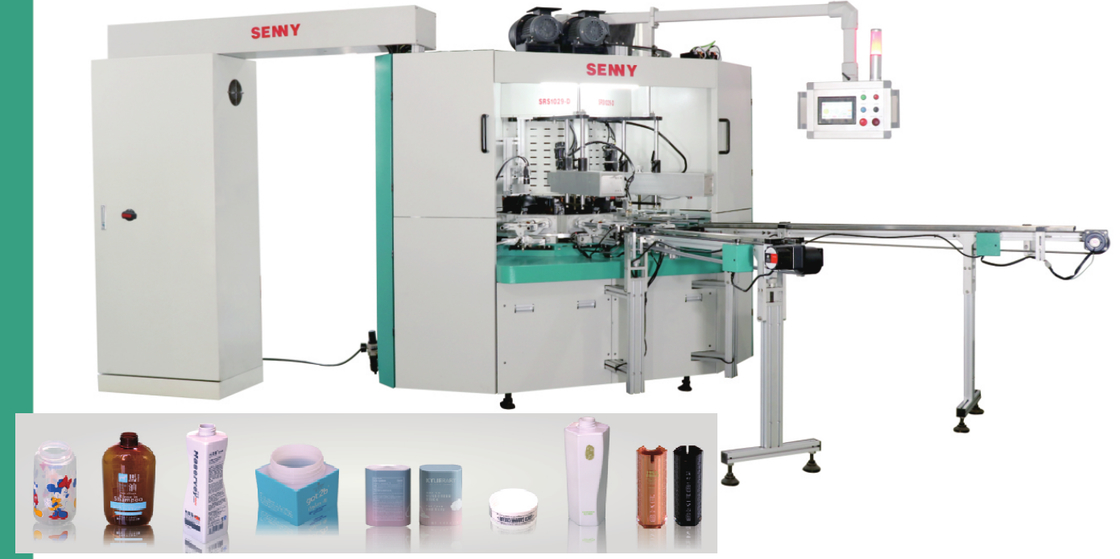

4-Color 45pcs/Min Tubes CNC Automatic Printing Machine
Machine Feature
-
SRS1249 is suitable for applying various decorative techniques—including screen printing with UV inks of multiple colors and hot stamping—on products of different shapes, such as bottles, caps, and jars. These items can be crafted from materials like plastic, metal, and glass.
-
Designed specifically for printing on small containers, this machine has a compact structure and takes up minimal space.
-
With an integrated turntable design, the machine completes all printing functions using the same set of fixtures. It offers printing accuracy as high as ±0.1 mm and guarantees no scratches on the products.
- The machine is driven by digital control servo motor to realize 360-degree printing of products,equipped with remote management and services functions(Industry 4.0).
- The machine adopts well-known brand electrical components,PLC control system ,easy-to-use touch screen and wireless tablet operation,with reliable performance.
Optional Configuration
- Plasma surface treatment function. Hot stamping function. Visual registration function.
- LED-UV curing system. Finished product quality inspection function.
Technical Parameters
| Machine Model | SRS1249 |
| Work Station | 12 |
| Printing Color | 4 colors |
| Container Height | 20-200mm |
| Diameter at 360 Degree | 13-60mm |
| Max.Printing Height | 160mm |
| Max.Printing Length | 200mm |
| Printing Speed | Up to45 pcs/min |
Printing your vision
About us:
Senny caters to a wide range of industries, including food, pharmaceuticals, toys, cosmetics, daily chemicals, electronics, and decorative products. Leveraging automatic printing technologies—such as screen printing, pad printing, hot stamping, labeling, offset printing, and digital printing—it enables the creation of high-quality, intricate graphics and text on the surfaces of products in diverse shapes, crafted from materials like plastic, metal, glass, and ceramics.
Since its establishment in 1994, Senny has consistently upheld its business philosophy: delivering premium products and services to customers. It utilizes cutting-edge electrical control components and materials for research, development, and manufacturing, while continuously enhancing the printing quality of various products. This commitment allows Senny to meet the ever-expanding market demands for high-standard packaging.
Θέλετε να μάθετε περισσότερες λεπτομέρειες σχετικά με αυτό το προϊόν
