Container 4-Color 60 Pcs/Min CNC Automatic UV Curing Screen Printing Machine
Λεπτομέρειες:
| Τόπος καταγωγής: | Dongguan China |
| Μάρκα: | SENNY |
| Πιστοποίηση: | CE SGS |
| Αριθμό μοντέλου: | SRS488 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1PC |
|---|---|
| Τιμή: | negotiable |
| Συσκευασία λεπτομέρειες: | Πακέτο κόντρα πλακέ |
| Χρόνος παράδοσης: | 45 ημέρες |
| Όροι πληρωμής: | T/t |
| Δυνατότητα προσφοράς: | 10 τεμ./Μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Αριθμό μοντέλου: | SRS388 | Τυπωμένο χρώμα: | 4 χρώματα |
|---|---|---|---|
| Υπηρεσίες μετά την πώληση: | Βίντεο ή on-line | Εγγύηση: | 1 έτος |
| Μάρκα: | Σένι | Τύπος πλάκας: | μηχανή εκτύπωσης οθόνης |
Περιγραφή προϊόντων

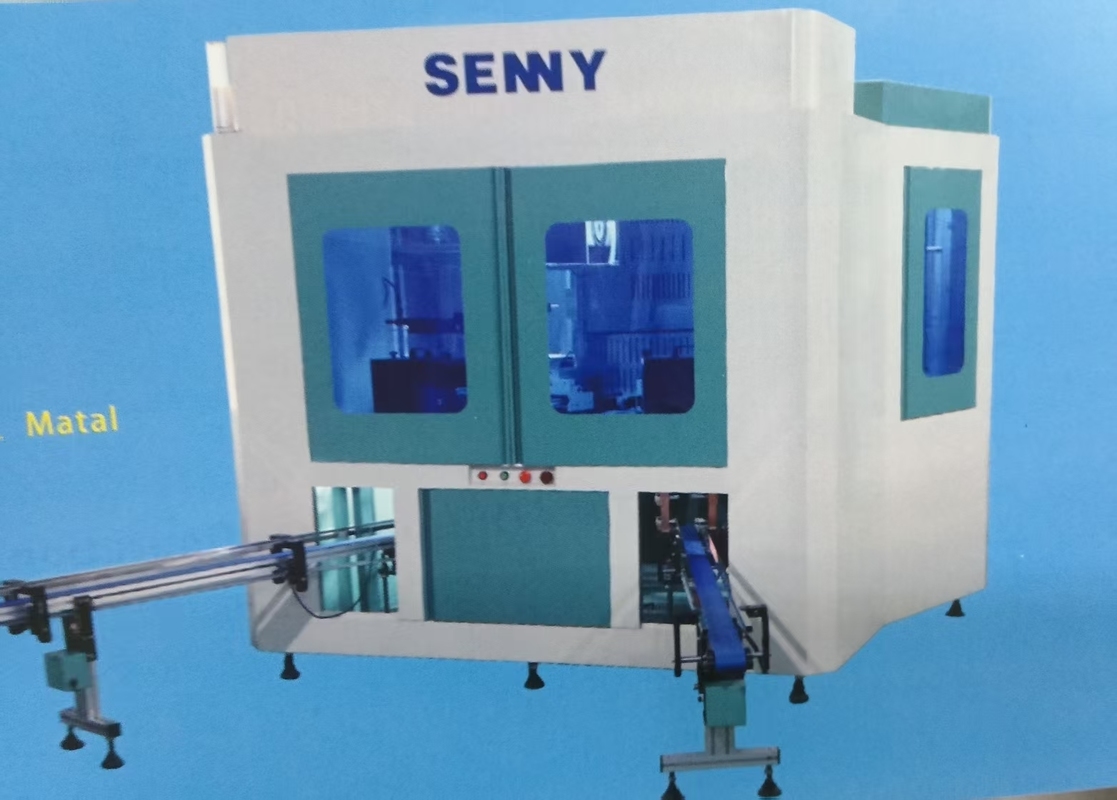

Container 4-Color 60 Pcs/Min CNC Automatic UV Curing Screen Printing Machine
Machine Feature

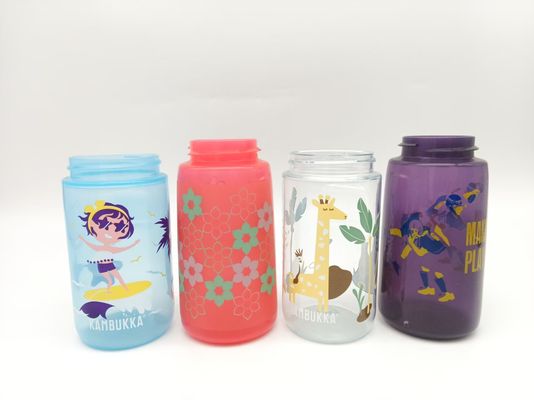

- SRS488 is suitable for screen printing UV inks in various colors, and also supports hot stamping and other decorative processes. It can work on products of different shapes—such as bottles, jars and caps—made from materials like plastic, metal and glass.
- Boasting an integrated turntable design, the machine finishes all printing functions with the same set of fixtures. It achieves a printing accuracy of up to ±0.1 mm and ensures no scratches on the products.
- With a digitally controlled servo motor as its driving force, the machine enables 360-degree printing on products. It is also equipped with remote management and service functions, which meet Industry 4.0 standards.
- The machine adopts electrical components from well-known brands, together with a PLC control system, an easy-to-operate touch screen and wireless tablet operation, providing reliable performance.
Optional Configuration
- Product lying flat feeding and discharging function. LED-UV curing system. Hot stamping function.
- Finished product quality inspection function. Plasma surface treatment function. Labeling function.
- Bottle body visual registration function. Bottle bottom visual registration function.
Technical Parameters
| Machine Model | SR4388 |
| Printing Color | 1-4 |
| Printing Speed | Up to 60 pcs/min |
| Diamater at 360 Degree | 13-100mm |
| Container Height | 20-320mm |
| Max.Printing Length | 300mm |
| Max.Printing Height | 200mm |
Printing your vision
About us:
Senny serves a wide array of industries, spanning food, pharmaceuticals, toys, cosmetics, daily chemicals, electronics, and decorative products. By utilizing automatic printing technologies—including screen printing, pad printing, hot stamping, labeling, offset printing, and digital printing—it creates high-quality, detailed graphics and text on the surfaces of products in diverse shapes, which are made from materials such as plastic, metal, glass, and ceramics.
Since its founding in 1994, Senny has steadfastly adhered to its business philosophy of delivering premium products and services to customers. The company employs top-grade electrical control components and materials for R&D and manufacturing, while constantly improving the printing quality of various products to satisfy the growing market demand for high-quality packaging.
