3 Work Station Bottles Screen Printing Machine For Jars Caps In Various Shapes 45pcs/Min
Λεπτομέρειες:
| Τόπος καταγωγής: | ΚΙΝΑ |
| Μάρκα: | SENNY |
| Πιστοποίηση: | CE SGS |
| Αριθμό μοντέλου: | SRS1669-DR |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 PCS |
|---|---|
| Τιμή: | negotiable |
| Συσκευασία λεπτομέρειες: | Πακέτο κόντρα πλακέ |
| Χρόνος παράδοσης: | ένα μήνα |
| Όροι πληρωμής: | T/t ή l/c |
| Δυνατότητα προσφοράς: | 15PCS ανά έτος |
|
Λεπτομερής ενημέρωση |
|||
| Αριθμοί χρώματος: | 1-6 χρώματα | Σύστημα ελέγχου: | Υπηρεσιακή κίνηση |
|---|---|---|---|
| Αυτόματος βαθμός: | Αυτόματο | Κατάσταση: | ΝΕΟΣ |
| Ταχύτητα εκτύπωσης: | 45-70pcs/min | Εγγύηση: | 1 έτος |
| Υπηρεσία μετά την πώληση: | Βίντεο ή on-line | Όροι πληρωμής: | T/t |
| Λεπτομέρειες πακέτου: | Πακέτο κόντρα πλακέ | Πιστοποίηση: | CE |
| Επισημαίνω: | 3 work station screen printing machine,screen printing machine for jars caps,multicolor screen printing machine 45pcs/min |
||
Περιγραφή προϊόντων
3 Work Station Bottles Screen Printing Machine For Jars Caps In Various Shapes 45pcs/Min
Machine Features
This fully automatic screen printer, powered by a CNC servo motor system, delivers exceptional versatility for 360-degree printing applications. It seamlessly handles various container types including plastic, glass, and metal bottles, jars, and caps—accommodating diverse shapes such as round, oval, triangular, square, and pentagonal designs—while utilizing multiple colors of UV inks for vibrant, durable results.
The innovative single-fixture design streamlines production by rotating containers through successive workstations, integrating feeding, precise registration, surface preparation, multi-color printing, UV curing, and discharging into a continuous, efficient process. This integrated approach ensures superior printing accuracy, maintains minimal distance between printed patterns and bottle bottoms, and incorporates gentle handling to prevent product surface damage.
For energy efficiency, the UV curing system can be partially or fully equipped with LED-UV technology, significantly reducing power consumption without compromising curing quality.
It is possible to cancel a screen printing and UV curing station, install a hot stamping system, and realize the simultaneous completion of screen printing and hot stamping functions.
The last screen printing and UV curing station can be cancelled, a visual inspection system for finished products can be installed, and the qualified and unqualified products can be separated after discharging.
The machine is equipped with a remote management function, which can remotely know or solve machine failures and technical problems for customers as long as the network is connected anywhere.
Parameters
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing Stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Complex shapes(20-100mm) | Cylindrical(20-100mm) | ||||||
| Printing Speed | Up to 45pcs/min | |||||||
| Max Printing Area | L250mm X W160mm | |||||||
| Product Height | 250mm | |||||||
| Air Pressure | 6-7 bar | |||||||
| Power | 380v 50/60HZ | |||||||
Applications

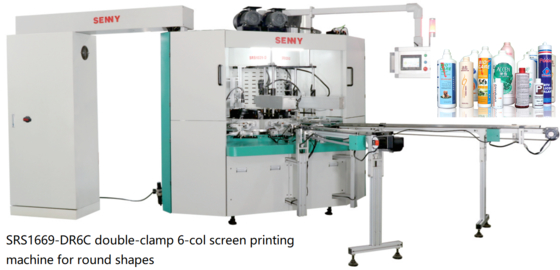

SRS1669-DR UV Screen Printing Machine is a UV curing plane screen printing machine. The printing scope is targeted and it can be used for screen printing of various cylindrical or irregular plane bodies such as plastic bottles, plastic containers, and other similar packaging containers that require UV curing effects.
Printing sample
