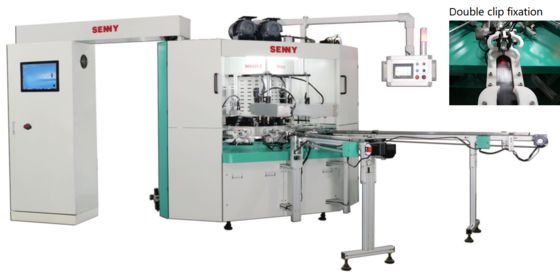

2 Color Bottles And Jars Screen Printer Workable For Various Shapes 8 Station
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | Senny |
| Πιστοποίηση: | CE SGS |
| Αριθμό μοντέλου: | SRS829 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 σετ |
|---|---|
| Τιμή: | negotiable |
| Συσκευασία λεπτομέρειες: | Πακέτο κόντρα πλακέ |
| Χρόνος παράδοσης: | ένα μήνα |
| Όροι πληρωμής: | T/t |
| Δυνατότητα προσφοράς: | 10pcs/μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Αυτόματο βαθμό: | Πλήρως αυτόματος | Τύπος πλάκας: | Εκτυπωτής οθόνης |
|---|---|---|---|
| Τυπωμένα χρώματα: | 1-6 χρώματα | Εκτύπωση ανθεκτικότητα: | Υψηλή ανθεκτικότητα |
| Εγγύηση: | 1 έτος | Υπηρεσία μετά την πώληση: | Βίντεο ή on-line |
| Όροι πληρωμής: | T/t | Λεπτομέρειες πακέτου: | Πακέτο κόντρα πλακέ |
| Πιστοποίηση: | T/T | ||
Περιγραφή προϊόντων
2 Color Bottles And Jars Screen Printer Workable For Various Shapes 8 Station
Product features:
This machine is suitable for printing UV inks of various colors on plastic, metal, glass, ceramic bottles and cans of various shapes.
The machine adopts digital control servo drive to complete various functions and printing, which can easily realize 360 degree printing for various shapes of products.
The machine adopts integrated turntable structure, the products are rotated to different stations in one fixture to realize the functions of feeding, positioning, surface treatment, printing, curing and discharging. The products are not easy to grind and the printing accuracy is up to ±0.1mm.

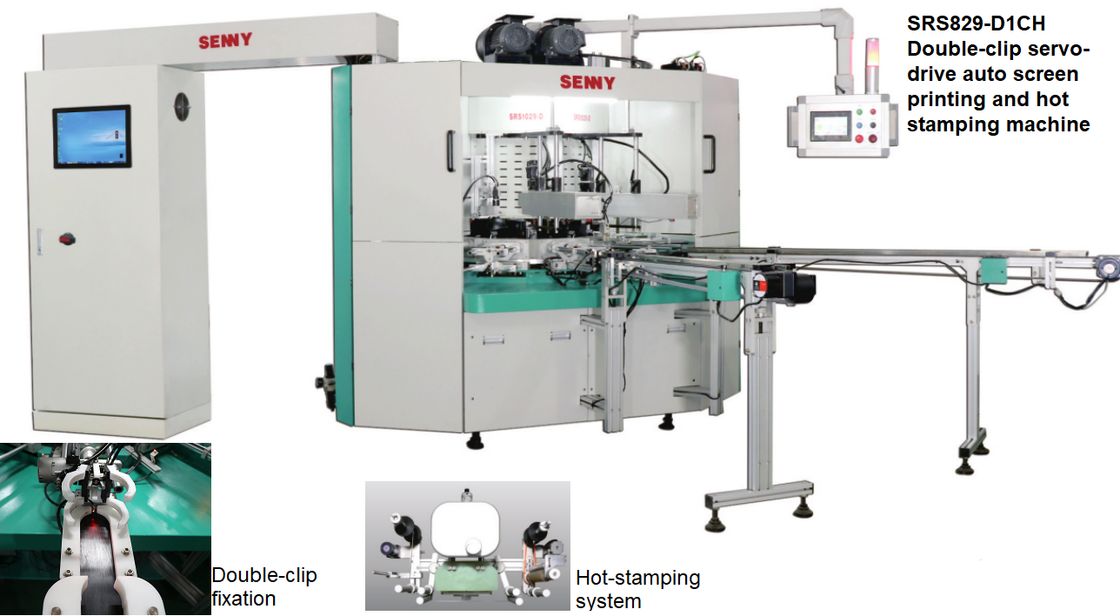

The machine can be connected with hot stamping or labeling module to become a multifunctional printing line of screen printing plus hot stamping or labeling.
The machine can be installed with finished product inspection function to divert unqualified products instead of manual inspection.
Feeding conveyor can be directly connected with bottle making equipment or with automatic bottle trimmer to replace manual feeding.
After printing, the discharge can be connected to bagging machine instead of manual bagging.
Technical Specifications:
| Specification/Model | SRS829 | SRS1039 | SRS1249 | SRS1669 |
| Station | 8 | 10 | 12 | 16 |
| Printing Color | 2 | 3 | 4 | 6 |
| Printing Speed | Up to 55pcs/min |
| Diameter of 360° | 13–65mm |
| Height of bottle | 20–220mm |
| Printing length | 200mm |
| Printing height | 120m |
Applications:
SRS829 CNC Small Container UV Screen Printing Machine is a UV screen printing machine for small containers. The printing scope is very wide and it can be used for screen printing of many small containers such as lids, bottles, eyebrow pencils, syringes, etc.

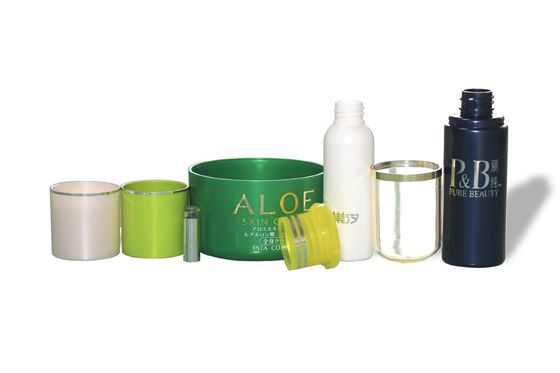

Printing sample
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
