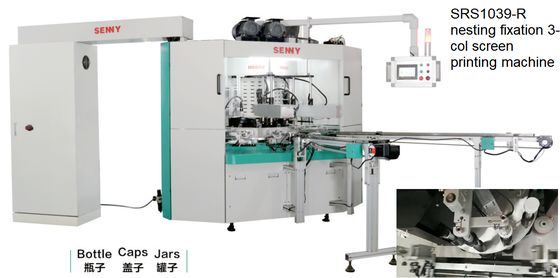

Fully Automatic UV Screen Printing Machine for Small Containers
Λεπτομέρειες:
| Τόπος καταγωγής: | Dongguan China |
| Μάρκα: | SENNY |
| Πιστοποίηση: | CE |
| Αριθμό μοντέλου: | SRS1039 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1PC |
|---|---|
| Τιμή: | negotiable |
| Συσκευασία λεπτομέρειες: | Συσκευή από πλακέτο |
| Χρόνος παράδοσης: | 45 ημέρες |
| Όροι πληρωμής: | T/t |
| Δυνατότητα προσφοράς: | 10 PC/μήνας |
|
Λεπτομερής ενημέρωση |
|||
| Αυτόματος βαθμός: | Πλήρως αυτόματος | Τύπος πλάκας: | Εκτυπωτής οθόνης |
|---|---|---|---|
| Υπηρεσίες μετά την πώληση: | Βίντεο ή on-line | ||
| Επισημαίνω: | CNC automatic screen printing machine,UV screen printing machine with warranty,360 degree screen printing machine |
||
Περιγραφή προϊόντων
Machine Feature
- The machine is suitable for screen printing various colors of UV ink, hot stamping and other decoration on bottles ,jarsa,caps and other shapes of product ,which are made of plastic,mental,glass and otrher materials.
- The machine is specially developed for small container printing, with compact structure and small footprint.
- The machine adopts an integated turntable design , all prrinting functions are completed in the same set of fixture, the printing accuracy is as high as ±0.1mm, and the product won't be scratched.
- The machine is driven by digital control servo motor realize 360-degree printing of products, equipped with remote management and service functions(Industry4.0).
- The machine adopts well-known brand electrical componets,PLC control system,easy-to-use touch screen and wireless tablet opreation , with reliable performance.
Optional Configuration
- Plasma surface treatment function. Hot stamping function. Visual registration function.
- LED-UV curing system Finished product quality inspection functuion.
Technical Parameters
| Machine Model | SRS829 | SRS1039 | SRS1249 | SRS1669 |
| Work Station | 8 | 10 | 12 | 16 |
| Priting Speed | Up to 45pcs/min | Up to 45pcs/min | Up to 45pcs/min | Up to 45pcs/min |
| Diameter at 360 degree | 13-60mm | 13-60mm | 13-60mm | 13-60mm |
| Container Height | 20-200mm | 20-200mm | 20-200mm | 20-200mm |
| Max Printing Length | 200mm | 200mm | 200mm | 200mm |
| Max Printing Height | 160mm | 160mm | 160mm | 160mm |
Printing your vision
